Envisivent Removable Flush Mount Air Return, 30” x 8” (Duct Opening)/Requires 30" x 10" Drywall Opening

Envisivent Removable Flush Mount Air Return, 30” x 8” (Duct Opening)/Requires 30" x 10" Drywall Opening

$92.16
$92.16 $144.00

NOTE: This item is not suitable for ceiling installation without the use of our ceiling clips - see "FREQUENTLY BOUGHT TOGETHER" below.

Description

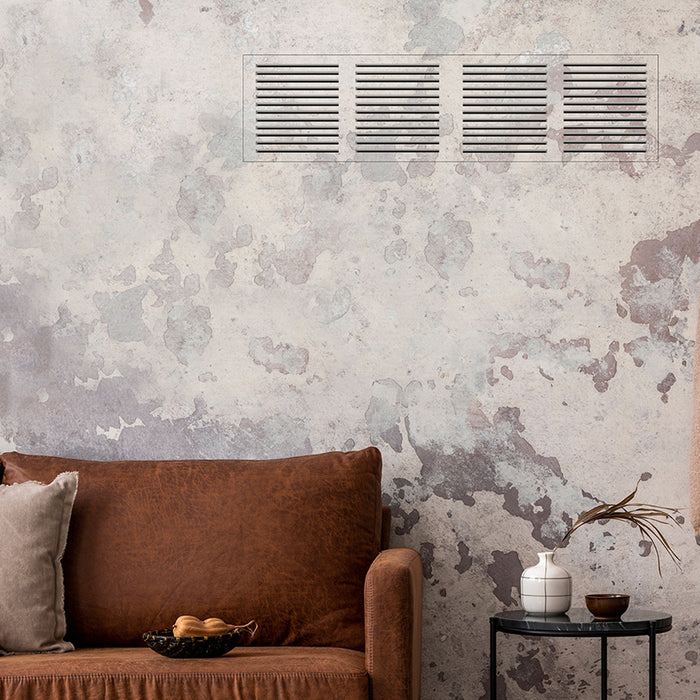

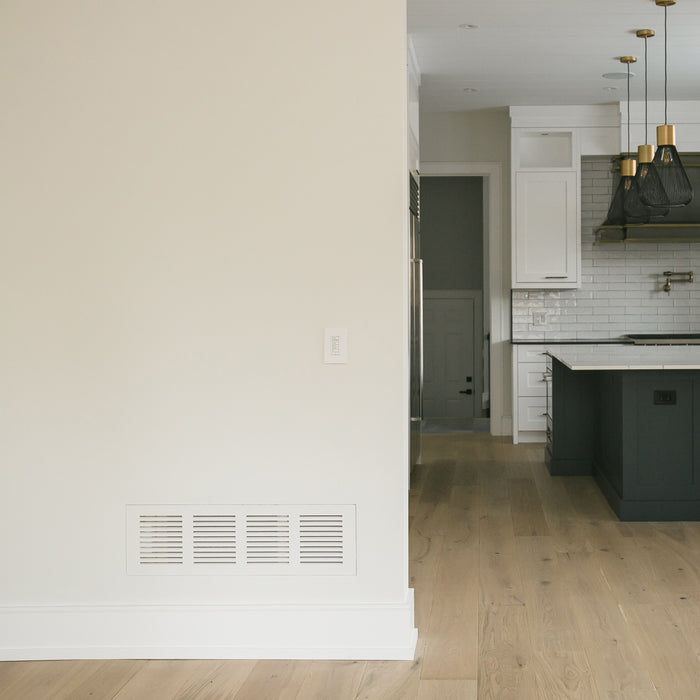

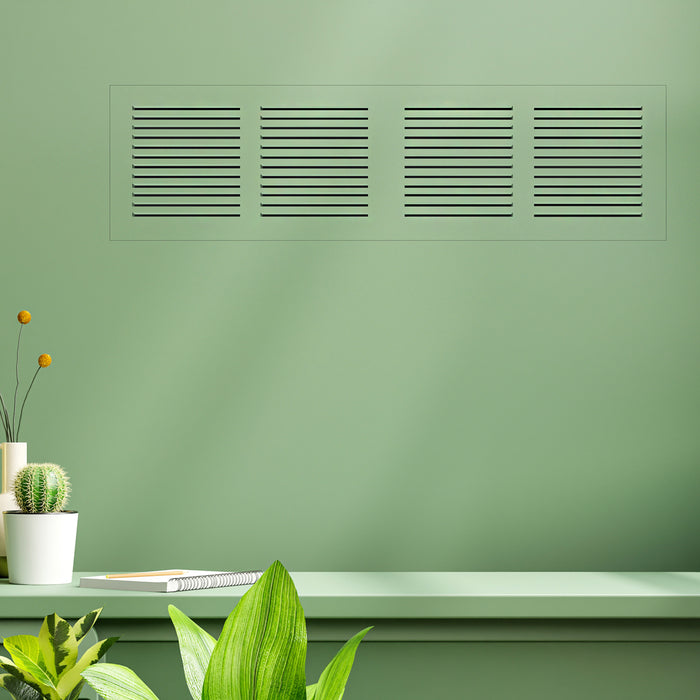

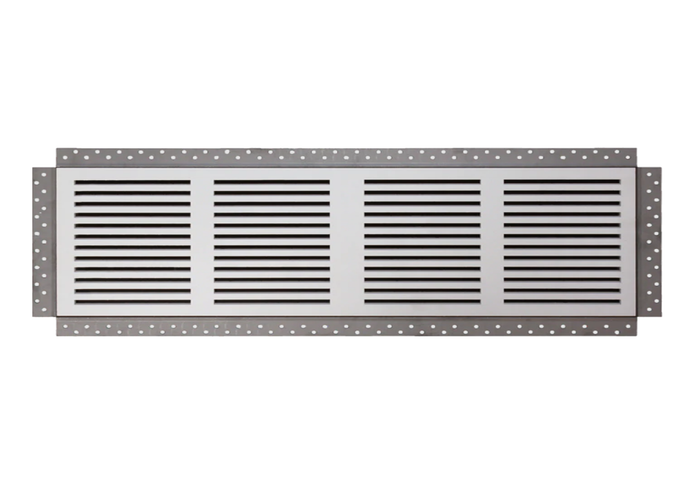

Envisivent's removable air return sits completely flush against your wall creating a blended smooth aesthetic. The vent cover is completely removable and is meant to replace a vent cover for a 30" x 8" duct opening (if applicable) or wall cavity and fits into a drywall opening of 29.5" x 10".

Envisivent vent covers fit the depth of standard drywall and are easy to install, simply tape, mud, sand, and then paint directly over the already primed vent cover for that blended look you want for every room of your house.

THIS ITEM IS NOT SUITABLE FOR CEILING INSTALLATION WITHOUT THE USE OF OUR CEILING CLIPS WHICH CAN BE ORDERED HERE

*To ensure you select the correct Envisivent product size, be sure to review our Sizing Guide in our Resource section.

Key Features
  • Four rows of 12 straight horizontal slots, totalling 48 slots
  • Over 90 square inches (580 square cm) of open vent area
  • 4 magnetic tabs on the vent cover for easy removal

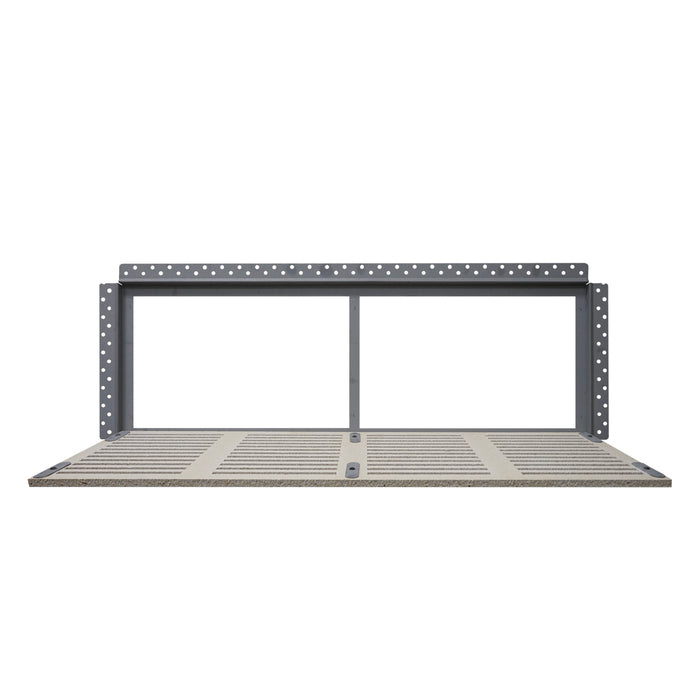

  • Metal frame screws onto the face of your drywall
  • Moisture, mold, and water resistant
  • Primed and ready to paint
  • Eco-friendly manufacturing and non-hazardous
  • Frame Material: Satin Coat Galvanized Steel
  • Vent Cover Material: Triple Fibre Reinforced Cement Board
  • Designed to be installed with 1/2" or 5/8"  thick drywall
Sizing
Duct Opening/Wall Cavity 30" x 8"
Drywall Opening 30" x 10"
Vent Cover 29.37” x 9.625”
Slotted Area
 28” x 8”
Number of Slots 48
Overall Dimensions with Frame 32” x 12.25 x 0.5"
Sizing Guide Click here for Sizing Guide


Specs, Install & Air Flow Data

Air flow Data

Air Return Sizing Guide

Specification Sheet

Installation Instructions

MSDS Sheet

Accessories

Air Filter Clips

Ceiling Clips
