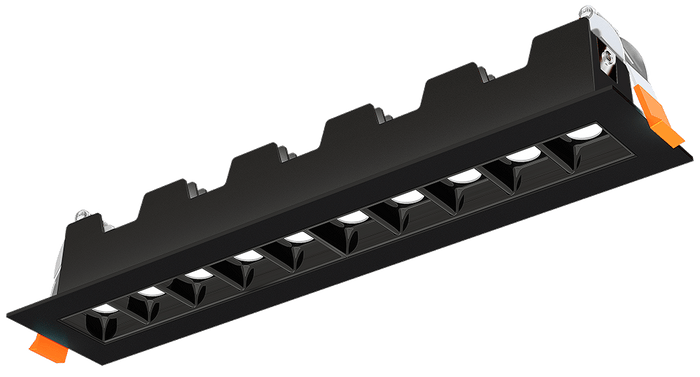

Lotus 10 LED Rotatable Linear Recessed Downlight 18W | JXL-TXH10-T18W

Overview

The Lotus LED 10 LED Linear Recessed fixture is an architectural-spec solution designed for unique and original lighting installations in residential, commercial, and hospitality settings. This linear luminaire features an integrated driver within a connection box, making it a streamlined choice for modern interior designs.

Key Features

• 5CCT User Selectable: Field-adjustable color temperatures allow for easy customization between 2700K and 5000K.
• IC Rated: Contractor-grade construction approved for direct contact with insulation, requiring no bulky recessed housing.
• Slim 2" Profile: Engineered for versatility, this fixture can be installed in tight plenums where ceiling space is limited.
• Dimmable: Includes a 120V TRIAC dimmable driver, allowing for smooth light control from 100% down to 20%.
• Architectural Versatility: Available in both 30° and 45° beam angles with white or black trim options to suit various design requirements.

Technical Specifications

• Power: 18W
• Light Output (White Reflector): 930 lm – 1230 lm
• Color Temperature: 5CCT Selectable (2700K, 3000K, 3500K, 4000K, 5000K)
• CRI: 80
• Beam Angle: 45° (default) or 30°
• Input Voltage: 120V AC 50/60 Hz
• Dimensions: 11 5/8" x 2 5/16" (Outside); 2" Depth
• Cut Out: 10 5/8" x 1 1/2"
• Approved Location: Insulated Ceiling & Damp Locations
• Air Tight: Yes
• Ambient Temperature: -4°F (-20°C) to +104°F (+40°C)
• Projected Life: 70% light output at 30,000 hours
• Certifications: cETLus
• Warranty: 3 Year
