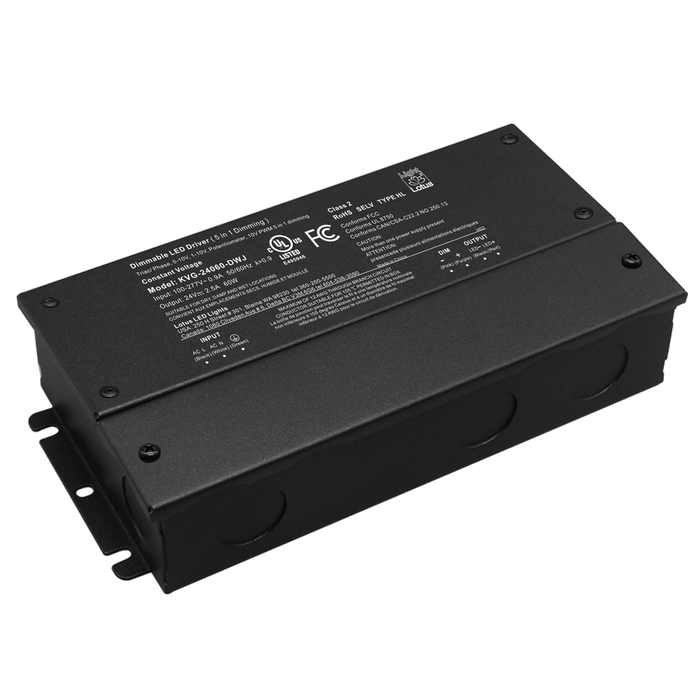

Lotus 24V 60W 5-in-1 Dimmable Driver 120-277V Wet | KVG-24060-DWJ

• Input: 120V – 277V AC
• Output: 24 V DC / 2.5A
• Power: 60 W
• 5-in-1 forward and reverse phase dimming: TRIAC / ELV / MLV, 0-10V, 1-10V, Potentiometer, 10V PWM
• Approved Locations – Dry, Damp & Wet
• Wiring Volume – 5 cu in per chamber
• Ambient Temperature: -40°F (-40°C) to +140°F (+60°C)
• Compliance: cULus, FCC
• Warranty: 5 Year

DIMENSIONS:

• Length 7 1/2?; Width 3 3/4?; Depth 1 3/4?

Product Features

• 60W maximum load
• 120V-277V AC Input
• 24V DC Constant Voltage Output / 2.5A
• 5-in-1 forward and reverse phase dimming: TRIAC / ELV / MLV, 0-10V, 1-10V, Potentiometer, 10V PWM
• Wiring Compartments for Line and Low Voltage Connections, 5 cu in per chamber
• Wet Location
• cULus Listed
• Warranty: 5 Year
