Lotus 3" Round Regressed Gimbal LED High Output 11W | LRG3-HO

Overview

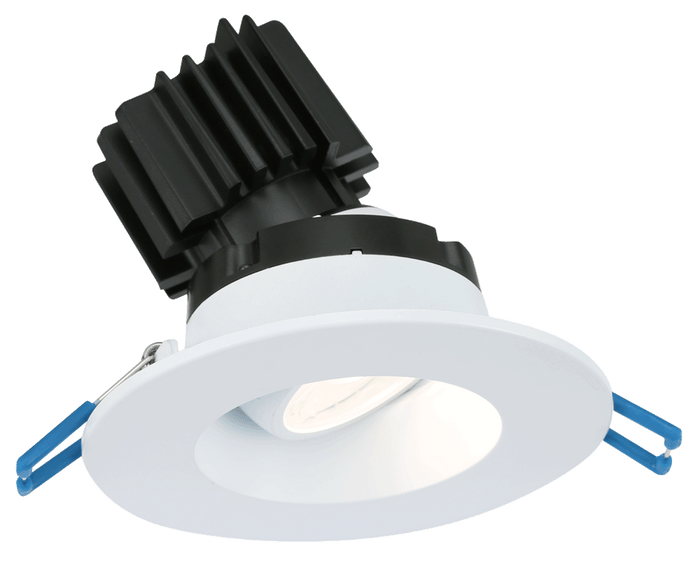

The Lotus LED 3" Round Regressed Gimbal High Output is an architectural-spec recessed lighting solution engineered for high-ceiling applications and precision accent lighting. This 11W fixture features a deep regressed design for superior glare reduction and a directional eyeball gimbal with 20° tilt and 360° rotation, making it ideal for sloped ceilings and highlighting artwork.

Key Features

• IC Rated: Certified for direct contact with insulation, eliminating the requirement for bulky recessed housings.
• High Output Performance: 11W LED delivers up to 1060 lumens, providing a powerful 90W halogen equivalent for commercial and residential spaces.
• Architectural Glare Control: The regressed optic design minimizes visual glare while maintaining high-quality illumination.
• Wet Location Rated: IP 54 certified and air-tight, making this fixture suitable for showers, bathrooms, and protected outdoor soffits.
• Contractor-Grade Installation: Integrated driver inside the connection box simplifies wiring and allows for fast setup in restricted ceiling spaces.

Technical Specifications

• Energy Used: 11W
• Light Output: 770 to 1060 lumens (depending on CCT/DTW)
• Halogen Equivalent: 90W
• Color Temperature: 3018K (Dim to Warm 3000K-1800K) or 5CCT (2700K, 3000K, 3500K, 4000K, 5000K)
• Beam Angle: 38° with 20° tilt and 360° rotation
• CRI: 90+
• Input Voltage: 120V AC (Standard); 120V-347V AC (Optional 0-10V)
• Dimmable: Triac Dimmable (Standard) or 0-10V Dimmable (Optional)
• Aperture/Dimensions: 3 1/4" ID, 4 1/4" OD (Standard trim)
• Thickness/Depth: 2 1/2" to 3 1/2" (depending on trim type)
• Cut-Out: 2 3/4" to 3 1/2" (depending on trim type)
• Ceiling Clearance: 2 1/2" to 4" (depending on trim type)
• IP Rating: IP 54
• Air Tight: Yes
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certifications: cULus, Title 24, Type IC, Air-Tight
• Warranty: 10 Year Residential / 5 Year Commercial
