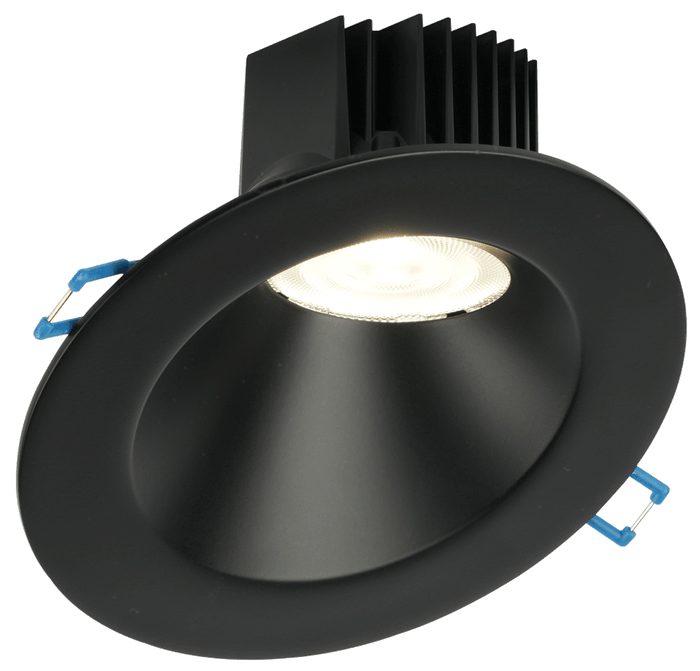

Lotus 4" Round 30° Sloped Regressed LED 15W | LD3R-4RSL

Overview

The Lotus LED LD3R-4RSL is an architectural-spec 4-inch round sloped recessed lighting fixture designed specifically for vaulted and cathedral ceilings. Featuring a 30° sloped trim and a 3/4-inch regressed light source, this contractor-grade LED provides a clean, directional beam while significantly reducing glare in residential and commercial applications.

Key Features

• Engineered with a 30° sloped trim, making it the ideal solution for sloped ceilings and wall washing.
• Type IC Rated and Air-Tight for direct contact with insulation without the need for a separate housing.
• Features 5CCT user-selectable color temperatures (2700K-5000K) or Dim to Warm (3000K-1800K) for maximum versatility.
• 3/4-inch regressed design with a 38° directional beam ensures superior visual comfort and reduced glare.
• Wet Location certified with an IP 54 rating, suitable for high-moisture environments and outdoor soffits.

Technical Specifications

• Wattage: 15W
• Light Output: 1220 - 1390 Lumens (depending on CCT)
• Halogen Equivalent: 120W
• Beam Angle: Standard 38° (Custom 15°, 24°, and 60° options available)
• CRI: 90+
• Input Voltage: 120V AC (Optional 120V-347V AC)
• Dimmable: Triac Dimmable (Default) / 0-10V Dimmable (Optional)
• Trim Slope Angle: 30°
• Dimensions: ID 4 1/2"; OD 5 3/4"; Cutout 4 1/2" to 5"
• Ceiling Clearance Required: 3 1/2"
• IP Rating: IP 54 (Wet Location)
• Air-Tight: Yes
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 50,000 hours (L70)
• Certifications: cULus
• Warranty: 10 Year Residential | 5 Year Commercial
