Lotus 4" Round Regressed Economy 5CCT IC Wet CRI 90+ | LE4RR-5CCT
Lotus 4" Round Regressed Economy 5CCT IC Wet CRI 90+ | LE4RR-5CCT

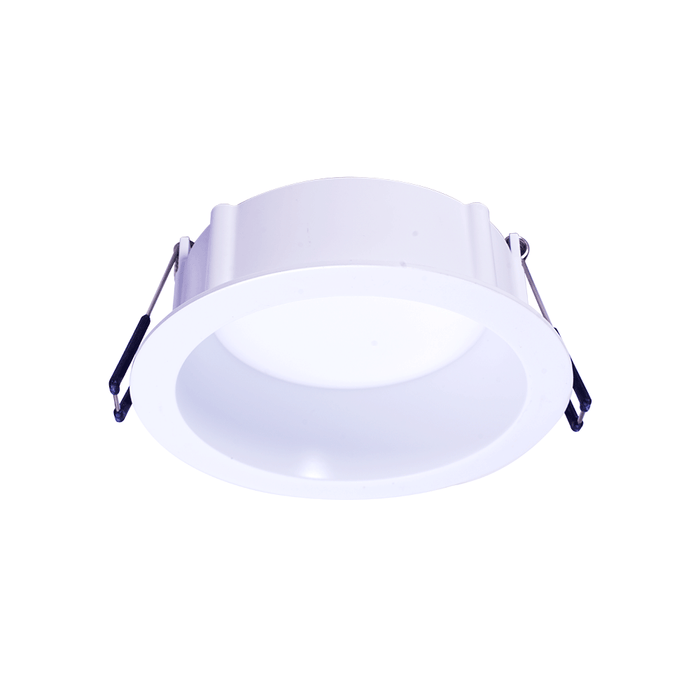

Lotus LE4RR 4" Round Deep Regressed Eco LED
Description: 11W All-In-One Recessed Downlight with 5-CCT Selection. Builder-grade fixture providing pleasant, low-glare light with an integral driver inside a connection box.
<>Product Overview
The Lotus LE4RR is a 4-inch deep regressed LED fixture designed to eliminate the need for traditional recessed housings. It features a 1 1/8-inch regress to significantly reduce glare and requires only 2 inches of ceiling clearance. The included connection box houses the driver and a 5-CCT selectable switch, allowing users to choose between 2700K, 3000K, 3500K, 4000K, and 5000K during installation. It is fully rated for IC (insulation contact), air-tight, and wet location applications.
Key Features
- 5-CCT Selectable: Switch between 2700K, 3000K, 3500K, 4000K, and 5000K.
- Low Glare Design: 1 1/8" regressed light source.
- No Housing Required: Type IC rated with integral driver and connection box.
- Low Clearance: Requires only 2" of ceiling space.
- High Fidelity: 90+ CRI for accurate color rendering.
Technical Specifications
| Power Consumption | 11 Watts (90W Halogen Equivalent) |
| Lumen Output (White Trim) | 975 lm (2700K) | 1000 lm (3000K) | 1033 lm (3500K) | 1030 lm (4000K) | 977 lm (5000K) |
| Lumen Output (Black Trim) | 708 lm (2700K) | 719 lm (3000K) | 736 lm (3500K) | 728 lm (4000K) | 708 lm (5000K) |
| Color Temperature (CCT) | User Selectable: 2700K, 3000K, 3500K, 4000K, 5000K |
| Color Rendering Index (CRI) | 90+ |
| Beam Angle | 90° |
| Input Voltage | 120V AC |
| Dimming Capabilities | 120V Triac (Forward Phase) Standard. Optional: 120V-347V 0-10V Dimming. |
| Environmental Ratings | Type IC (Insulation Contact), Air-Tight, Wet Location (IP54) |
| Operating Temperature | -40°F to +104°F (-40°C to +40°C) |
| Projected Lifespan (L70) | 36,000 Hours |
| Certifications | cULus Listed, RoHS Compliant |
| Warranty | 5-Year Limited Warranty |
Dimensions & Mounting
| Ceiling Cutout Required | 4 1/8" to 4 1/4" |
| Trim Outer Diameter (OD) | 4 13/16" |
| Inner Regress Diameter (ID) | 4 1/8" |
| Fixture Depth/Thickness | 2" |
| Regress Depth | 1 1/8" |
| Connection Box Dimensions | 3 3/4" (L) x 3 3/8" (W) x 1 1/2" (H) |
| Mounting Method | Attached heavy-duty spring clips for tool-less snap-in installation. |
