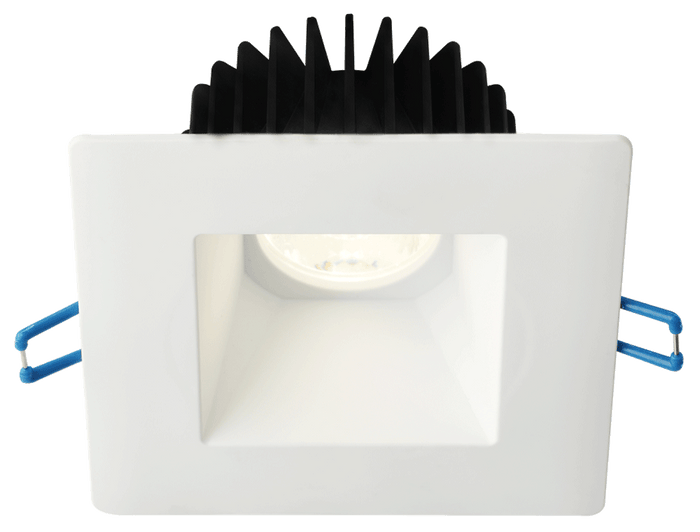

Lotus 4" Square Deep Regressed Corrosion Resistant LED Downlight - 15W | LD4S-CPL
Lotus 4" Square Deep Regressed Corrosion Resistant LED Downlight - 15W | LD4S-CPL
The Lotus LD4S-CPL is a corrosion-resistant 4-inch square deep regressed LED downlight designed for installations where standard trim materials are not the best long-term choice. It combines the same clean, low-glare architectural look of the LD4S family with a rust-free polycarbonate trim built for harsher environments.
Purpose-built for ocean front soffits, saunas, and steam showers, the LD4S-CPL delivers premium light quality with 90+ CRI, flexible beam control, and the same compact no-housing-required installation platform used across the LD4S family. This is the right merchandising angle: not just another trim option, but a specialty solution for corrosive and moisture-heavy environments.
Why this downlight stands out
- Corrosion-resistant polycarbonate trim
- Rust-free design for oceanfront and high-moisture environments
- Ideal for soffits, saunas, and steam showers
- Deep regressed low-glare architectural appearance
- 15W platform with 90+ CRI
- 30° standard beam with optional 15° and 60°
- Type IC, wet location, air-tight, and open plenum rated
- Available in white or black trim
Applications
- Ocean front soffits
- Saunas
- Steam showers
Available light options
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
- 5CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
- Dim to Warm 3000K to 2000K
- Dim to Warm 3000K to 1800K
Available trim options
- White Polycarbonate Trim
- Black Polycarbonate Trim
Key specifications
| Model | LD4S-CPL |
|---|---|
| Fixture Type | 4" Square Deep Regressed Corrosion Resistant LED Downlight |
| Power | 15W |
| CRI | 90+ |
| Beam Angles | 30° standard, 15° optional, 60° optional |
| Default Driver | 120V AC Triac dimmable |
| Optional Driver | 120V-347V AC 0-10V dimmable |
| Location / Construction Ratings | Type IC, Air-Tight, Wet Location, Open Plenum |
| IP Rating | IP54 |
| Heat Sink Material | Aluminum Alloy |
| Trim Material | 80% Polyamide PA66 + 20% Fiberglass 20GF |
| Trim Color | White & Black |
| Fixture Work Temperature | -40°F (-40°C) to +104°F (+40°C) |
| Trim Ambient Temperature | Maximum +400°F (+205°C) |
| Projected Life | 70% light output at 50,000 hours |
| Certification | cULus |
| Warranty | 10 Year Residential / 5 Year Commercial |
| Dimensions | ID 3 1/2" | OD 4 7/8" | Cutout 4" |
Lumen output
| Light Engine | Lumens |
|---|---|
| 2700K | 1315 lm |
| 3000K | 1360 lm |
| 3500K | 1340 lm |
| 4000K | 1430 lm |
| 5000K | 1420 lm |
| Dim to Warm 3000K-2000K | 1070 lm |
| Dim to Warm 3000K-1800K | 1210 lm |
5CCT lumen output
| 5CCT Setting | Lumens |
|---|---|
| 2700K | 1140 lm |
| 3000K | 1200 lm |
| 3500K | 1310 lm |
| 4000K | 1360 lm |
| 5000K | 1370 lm |
Accessories sold separately
- Optional 120V-347V 0-10V dimmable driver: LLL-LD1535TR
- 26" flat rough-in plate: RIP414
- 13" flat rough-in plate: MP4-2
- 13" flanged rough-in plate: MP4
- 4 1/8" hole flanged with hanger bars: FRP4
- Armored low voltage extension 10 ft: MEC10
- Corrosion-resistant polycarbonate trim
- Built for oceanfront soffits, saunas, and steam showers
- 4-inch square deep regressed low-glare design
- 15W with 90+ CRI
- Type IC, wet location, airtight, open plenum
- White or black trim options
Frequently Asked Questions
What makes the LD4S-CPL different from the regular LD4S?
The LD4S-CPL uses a corrosion-resistant polycarbonate trim and is specifically positioned for harsher environments like oceanfront soffits, saunas, and steam showers.
Where should the LD4S-CPL be used?
It is designed for ocean front soffits, saunas, and steam showers where rust resistance matters.
What trim colors are available?
The LD4S-CPL is available in white and black trim options.
Is the LD4S-CPL still rated for wet locations and insulated ceilings?
Yes. It is Type IC, air-tight, wet-location approved, and open-plenum rated.
What beam angles are available?
The standard beam is 30 degrees, with optional 15-degree and 60-degree versions available.
