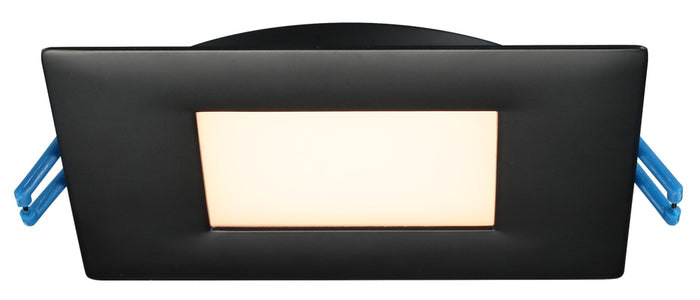

Lotus 4" Square Super Thin Recessed LED 13.5W | LL4S
Black / 3000K
$17.95
Sale price
$17.95
Regular price
$28.05
Skip to product information
Lotus 4" Square Super Thin Recessed LED 13.5W | LL4S
$17.95
Sale price
$17.95
Regular price
$28.05
Overview
The Lotus LED LL4S is a contractor-grade 4-inch square super thin recessed lighting fixture featuring an ultra-slim 1/2-inch profile. Designed for applications with strictly limited plenum space, this architectural-spec solution includes an integral driver in a connection box, eliminating the requirement for a traditional junction box.Key Features
- Ultra-thin 1/2" profile requires only 2" of ceiling clearance for versatile installation in shallow plenums.
- Type IC Rated for direct contact with insulation, simplifying installation without the need for additional housing.
- Wet Location and IP54 rating allow for safe installation in showers, kitchens, and exterior soffits.
- Broad 110° beam angle provides uniform light distribution, ideal for general illumination.
- Dimmable 120V AC Triac driver provides smooth control for residential and commercial interiors.
Technical Specifications
- Energy Used: 12W
- Light Output: 750 lm – 900 lm
- Halogen Equivalent: 65W
- Beam Angle: 110°
- CRI: 80
- Default Driver Input: 120V AC Triac Dimmable
- Optional Driver Input: 120V-347V AC 0-10V Dimmable
- Power Factor: 0.98
- Approved Location: Insulated Ceiling & Wet Locations
- IP Rating: IP 54
- Air Tight: Yes
- Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
- Projected Life: 70% light output at 50,000 hours
- Certification: cULus
- Warranty: 5 Year
- Aperture ID: 4"
- Trim OD: 4 3/4" Square
- Cut-out: 4" to 4 1/4"
- Thickness: 1/2"
