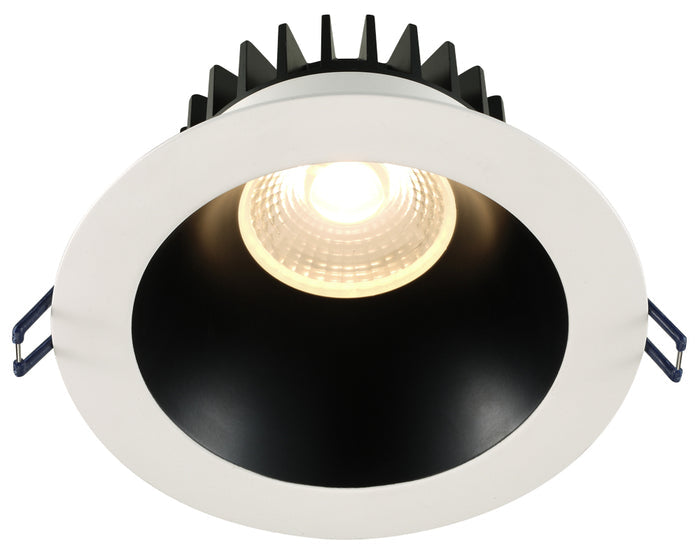

Lotus 6" Round Deep Regressed LED Open Plenum 18W | LD6R

Overview

The Lotus LED 6" Round Deep Regressed LED Open Plenum is an architectural-spec recessed lighting solution designed for elegant, glare-free illumination. This 18W fixture features a deep regressed aperture and is specifically engineered with armored cable and metal connectors for high-performance open plenum applications. It provides a clean, professional aesthetic while maintaining commercial-grade durability without the need for a traditional housing.

Key Features

• Glare-Reduced Design: The deep regressed design provides an elegant look while significantly reducing visual glare in professional environments.
• Open Plenum Rated: Constructed with armored cable and metal connectors to meet strict commercial building codes.
• IC Rated & Air-Tight: This contractor-grade fixture is certified for direct contact with insulation and maintains an air-tight seal for superior energy efficiency.
• Versatile Color Selection: Available in 5 single CCT settings, Dim to Warm, or 5CCT user-selectable options to suit any project requirement.
• Simplified Installation: Features an integrated driver inside the connection box, eliminating the need for a separate junction box in restricted 3" ceiling clearances.

Technical Specifications

• Energy Used: 18W
• Light Output: 1150 - 1700 lm
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K, Dim to Warm (3000K-2000K), or 5CCT Selectable
• Beam Angle: 38° standard (60° custom available)
• CRI: 90+
• Input Voltage: 120V AC (Standard Triac Dimmable) or 120V-347V AC (Optional 0-10V Dimmable)
• Power Factor: 0.98
• Aperture/Dimensions: ID 6 1/8", OD 6 3/4"
• Cut-Out: 6 1/4"
• Ceiling Clearance: 3"
• IP Rating: IP 54 (Wet Location Rated)
• Air Tight: Yes
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certification: cULus, T24, Type IC, Open Plenum Rated
• Warranty: 10 Year Residential / 5 Year Commercial
