Lotus 6" Round Deep Regressed LED Open Plenum High Output 30W | LD6R-HO

Overview

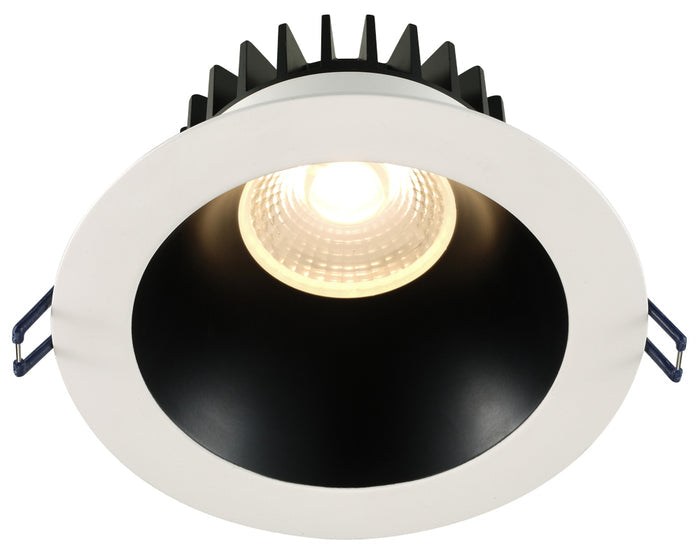

The Lotus LED 6" Round Deep Regressed LED Open Plenum High Output is a commercial-grade recessed lighting solution designed for high-performance architectural applications. This 30W fixture features a deep-regressed design that provides elegant illumination without glare, making it ideal for professional environments with steep visual requirements. Engineered with armored cable and metal connectors, it is specifically rated for open plenum spaces and can be installed in restricted 3" ceiling clearances without a traditional housing.

Key Features

• High-Performance Output: Delivers up to 3000 lumens, providing powerful illumination equivalent to high-wattage traditional fixtures.
• Architectural Glare Reduction: The deep-regressed aperture and high-end finish trims provide a clean, glare-free aesthetic suitable for high-end commercial spaces.
• Open Plenum Rated: Features armored cable and metal connectors to meet strict building codes for open plenum and commercial installations.
• IC Rated & Air-Tight: Certified for direct contact with insulation and air-tight installation, simplifying setup while maintaining energy efficiency.
• Contractor-Grade Installation: Includes an integrated driver inside the connection box with Romex quick connectors, eliminating the need for a separate junction box.

Technical Specifications

• Energy Used: 30W
• Light Output: 2630 to 3000 lumens
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
• Beam Angle: 38° standard (60° custom available)
• CRI: 90+
• Input Voltage: 120V AC Triac Dimmable (Standard) or 120V-347V AC 0-10V Dimmable (Optional)
• Power Factor: 0.98
• Aperture/Dimensions: ID 6 1/8", OD 6 3/4", Thickness 3 1/2"
• Cut-Out: 6 1/4" to 6 1/2"
• Ceiling Clearance: 3"
• IP Rating: IP 54 (Wet Location Rated)
• Air Tight: Yes
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certification: cULus, Energy Star, T24, Type IC
• Warranty: 10 Year Residential / 5 Year Commercial
