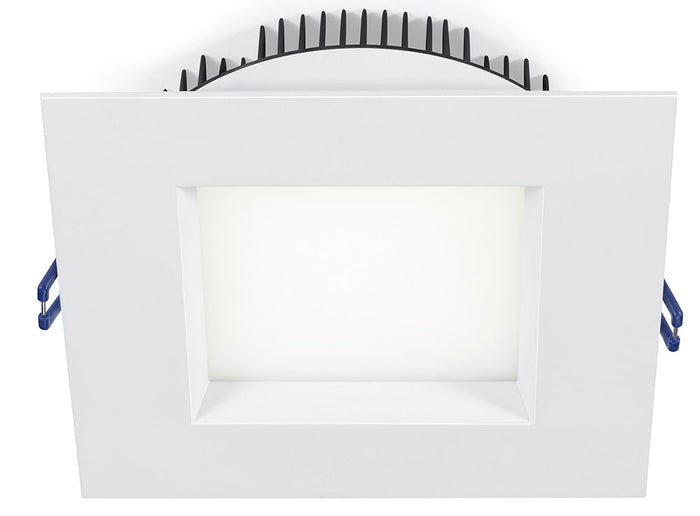

Lotus 6" Square Regressed 1st Gen Plenum LED 18W | LL6SRG

Overview

The Lotus LED 6-inch square regressed plenum fixture is a contractor-grade recessed lighting solution engineered for architectural precision. Featuring a 2 1/4-inch thin profile, this high-performance luminaire is specifically designed to fit into tight ceiling spaces while providing low-glare, high-quality illumination.

Key Features

• Open Plenum Rated: Architectural-spec construction suitable for commercial installations with open plenum requirements.
• Architectural Design: Deep regressed optics provide high-quality light with significantly reduced glare.
• IC Rated: Approved for direct contact with insulation, eliminating the need for bulky recessed housings.
• High Color Rendering: Features a CRI of 93 for true and vibrant color rendering in demanding environments.
• Extreme Weather Durability: Rated for wet locations and operational in temperatures as low as -40°F (-40°C).

Technical Specifications

• Power: 18W
• Halogen Equivalent: 100W
• Light Output: 1000 lm (2700K) to 1050 lm (4100K)
• Color Temperature: Available in 2700K, 3000K, and 4100K
• CRI: 93
• Beam Angle: 95°
• Input Voltage: 120V AC 50/60 Hz
• Dimming: TRIAC Dimmers 5% - 100%
• Dimensions: ID 6", OD 7", Thickness 2 1/4"
• Cut Out: 6" to 6 1/4"
• Ambient Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certifications: cULus, T24, Energy Star
• Warranty: 10 Year Residential / 5 Year Commercial
