Lutron Lumaris Hardwired Power Interface – 120/277 V Input, 24 V Output, Powers Up to 3 Controllers | LU-PH3-A

The Lutron hardwired power interface for Lumaris Tunable White Tape Light adds installation versatility by powering up to 3 Lumaris wireless controllers and up to 48 ft of Lumaris LED tape from a single hardwired source. Three barrel-to-terminal adapters are included for clean wiring from wireless controllers to the interface.

Key Features

• Powers up to (3) Lumaris wireless controllers and up to 48 ft of Lumaris tunable white tape

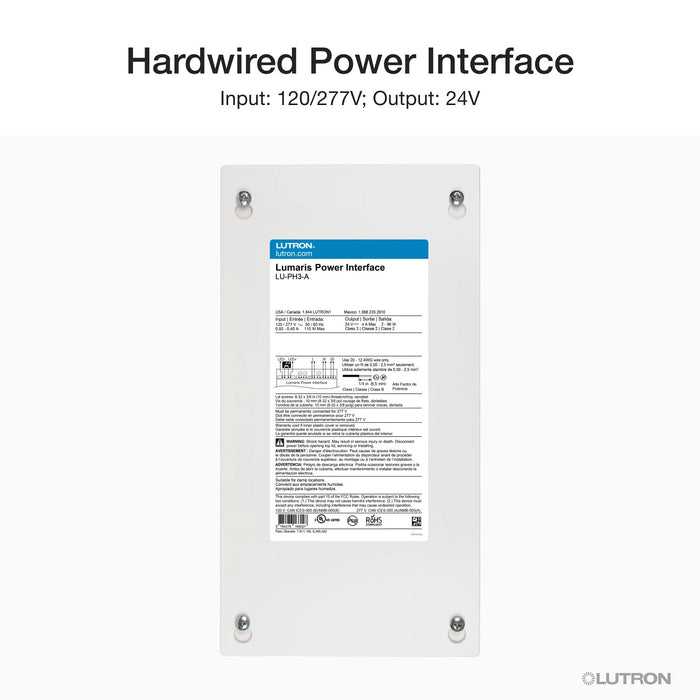

• Input: 120/277 V~ (50/60 Hz); output: 24 V
• Accepts 12 AWG to 20 AWG conductors — see the wiring section of the spec sheet for length configurations
• Includes (3) barrel-to-terminal adapters

Applications

• Multi-zone Lumaris tunable white layouts fed from a central electrical location
• Projects where plug-in supplies are not desirable or receptacles are unavailable

System Notes

• Must be used with Lumaris Wireless Controllers for RadioRA 3 (RRL-TWC*)
• For independent control, home-run each wireless controller to the power interface; zone or grouped applications may be home-run or T-tapped
• Indoor damp/dry location rating with output short-circuit and overload protection
• Verify layout, load, and control requirements before ordering
